Product Details:
Payment & Shipping Terms:
|
| Color: | White Zinc | Motor: | 85w |
|---|---|---|---|
| Airflow: | 410m3/h | Speed: | 2290rpm |
| Weight: | 3.5kgs | OEM: | Yes |
| Highlight: | industrial inline exhaust fans,in line centrifugal duct fan |
||

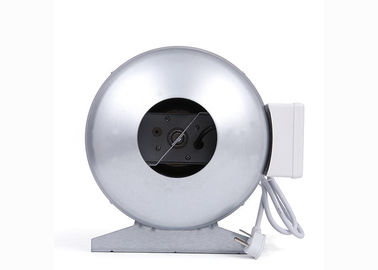

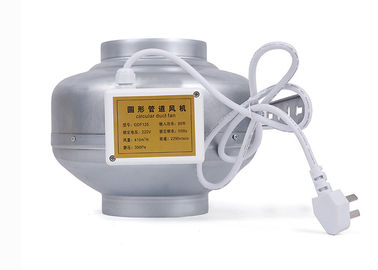

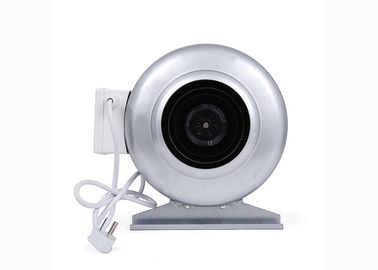

The Inline duct fans hosing is made of high quality cold-rolled sheet or galvanized sheet, with excellent corrosion resistance.
Grow tent ventilation equipment
The air inlet is designed according to aerodynamics so as to facilitate turbulence entering Impeller.
The Inline duct fans size of air inlet is the same as air outlet. It's easy to install. Air inlet and outlet cover are connected by screw for easy maintenance and cleaning.
Good looking
Compact structure
standard size for the inlet and outlet
| Performance parameter | ||||||||
|
Model |
GDF 100 |
GDF 125 |
GDF 150 |
GDF 160 |
GDF 200 |
GDF 250 |
GDF 300 |
GDF 315 |
| Air volume (m3/h) | 290 | 410 | 700 | 760 | 1000 | 1100 | 1800 | 1890 |
| Wind pressure(pa) | 390 | 350 | 440 | 430 | 550 | 570 | 800 | 820 |
| Voltage /frequency(v/hz) | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 |
| Electric current(A) | 0.40 | 0.4 | 0.45 | 0.5 | 0.69 | 0.84 | 1.22 | 1.22 |
| The input power(W) | 85 | 85 | 100 | 115 | 158 | 190 | 280 | 280 |
| Speed(rpm) | 2290 | 2290 | 2500 | 2620 | 2500 | 2470 | 2400 | 2400 |
| Weight(kg) | 3.4 | 3.5 | 4.8 | 4.9 | 6.5 | 6.7 | 8.0 | 8.2 |
| Capacitance(µf) | 2 | 2 | 3 | 4 | 4 | 4 | 6 | 6 |
| The motor insulation class | F | F | F | F | F | F | F | F |
| Fan protection grade | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 |
| The sound power level | 47 | 47 | 52 | 52 | 53 | 55 | 56 | 56 |
FAQ:
What is your payment term?
We accept T/T, L/C, Paypal and west union
What is your delivery time?
For sample order, it take about 5 - 7 days; for bulk order, it is about 15 - 30 days;
Is our local power voltage working?
Yes, we could use suitable motor and plug;
